HVACR solutions for Regulation – Supervision – Air Humidification
Condensate/water drain tubes for CAREL humidifiers
During normal operation of the steam distributors (DP* and SDPOEM00* series), condensate forms and it needs to be discharged using a special 10 millimeters diameter tube.

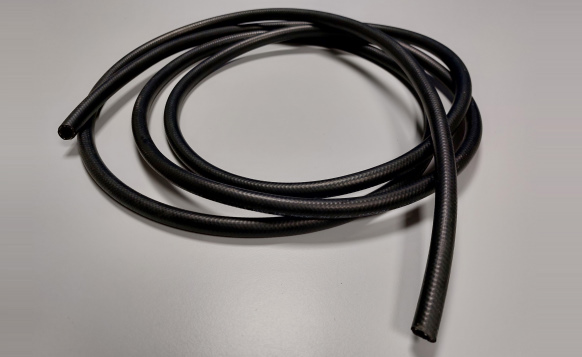

For isothermal humidifiers (UE*, UR*, CH* and UG* series), water is drained using a rubber tube, resistant up to 100 °C, with a diameter of 40 mm.
The available codes are these:
Code
Article description
Diameter
1312368AXX
CONDENSATE DRAIN TUBE
10 millimeters
1312357APG
WATER DRAIN TUBE
40 millimeters (pc. of 1 m)
Attention: when ordering, pay attention to the desired length in meters.
