thTx zone regulator

CLIMASET srl is proud to present thTX, the all-new CAREL zone regulator with embedded temperature/humidity probes, designed for conditioning and heating applications.

The thTX adds up to our offerings for radiant and hybrid systems:

  • KTH, temperature/humidity sensor placed on wall,
  • thTune, LCD screen with temperature/humidity probe,
  • pGDX, touch screen with temperature/humidity probe.

ThTx main features

User interface

LCD screen display: tempered glass icons and capacitive touch buttons.

Stand-alone regulator

Hot/cold digital thermostat
Digital humidostat
3-speed regulator for controlling fancoils or the air conditioning

BUS regulator with Modbus protocol

Embedded temperature and humidity probe + Relay for managing head or zone valve.

Structure

Single product (monobloc)
Flush mounted
Mechanically interchangeable with a normal CAREL th-Tune

Power supply

24 V AC/DC or 115-230 VAC.

Available models

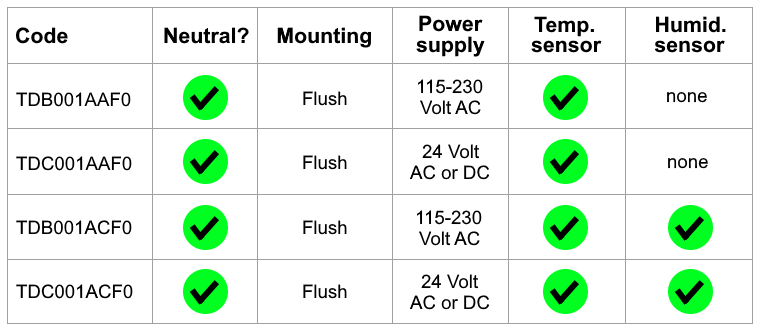

Check the list below to discover the most suitable model for your application:

  • TDB001AAF0: THTX NEUTRAL, FLUSH MOUNTING, 115-230VAC, ONLY T SENSOR
  • TDC001AAF0: THTX NEUTRAL, FLUSH MOUNTING, 24VDC/AC, ONLY T SENSOR
  • TDB001ACF0: THTX NEUTRAL, FLUSH MOUNTING, 115-230VAC, T/H SENSOR
  • TDC001ACF0: THTX NEUTRAL, FLUSH MOUNTING, 24VDC/AC, T/H SENSOR
