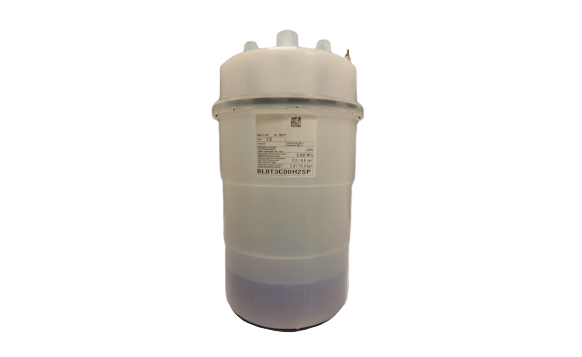

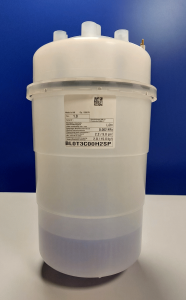

CLIMASET s.r.l. offers replactement cylinders for Carel compactSteam and humiSteam humidifiers, already ready for delivery at our warehouse.
To place an order, use the contact module at the right of this page, we will contact you as soon as possibile with our best offer!
CLIMASET s.r.l. offers replactement cylinders for Carel compactSteam and humiSteam humidifiers, already ready for delivery at our warehouse.
To place an order, use the contact module at the bottom of this page, we will contact you as soon as possibile with our best offer!
When is time to replace the cylinder?
The steam cylinder is a filter designed for retaining limescale of the supply water and its periodic replacement of the steam cylinder is critical: disposable cylinders must be replaced every year or after 1500 working hours, depending on the water conducibility and the supply water quality.
Which code to order?
See the following tables to learn the code of the cylinder to order for your humidifier. Water conducibility is measured in µS/cm, while humidifier capacity is expressed in kg/h.
compactSteam humidifiers
For CH***N2003, single-phase 230 Vac humidifier
| Feed water conductivity | |||
|---|---|---|---|
| Low | Medium | High | |
| Capacity kg/h | 100-250 μS/cm | 250-1250 μS/cm | |
| 1,6 | CY0S2G0002SP | CY0S2F0002SP | |
| 3,3 / 4,5 | CY0SE0002SP | ||
humiSteam humidifiers
For UE****D001, single-phase 230 Vac humidifier
| Feed water conductivity | |||
|---|---|---|---|
| Low | Medium | High | |
| Capacity kg/h | 75-350 μS/cm | 350-750 μS/cm | 750-1250 μS/cm |
| 1 | BL0S1E00H2SP | BL0S1F00H2SP | |
| 3 | BL0S1E00H2SP | BL0S1F00H2SP | |
| 5 | BL0S2E00H2SP | ||
| 9 | BL0S3E00H2SP | BL0S3F00H2SP | |
For UE***L001, three-phase 400 Vac humidifier
| Feed water conductivity | |||
|---|---|---|---|
| Low | Medium | High | |
| Capacity kg/h | 75-350 μS/cm | 350-750 μS/cm | 750-1250 μS/cm |
| 3 | BL0T1A00H2SP | BL0T1C00H2SP | BL0T1D00H2SP |
| 5 | BL0T2B00H2SP | BL0T2C00H2SP | BL0T2D00H2SP |
| 8 | BL0T2B00H2SP | BL0T2C00H2SP | BL0T2D00H2SP |
| 10 | BL0T3B00H2SP | BL0T3C00H2SP | BL0T3D00H2SP |
| 15 | BL0T3B00H2SP | BL0T3C00H2SP | BL0T3D00H2SP |
| 18 | BL0T3B00H2SP | BL0T3C00H2SP | BL0T3D00H2SP |
| 25 | BL0T4C00H2SP | BL0T4D00H2SP | |
| 35 | BL0T4C00H2SP | BL0T4D00H2SP | |
| 45 | BL0T4B00H2SP | BL0T4C00H2SP | |
| 65 | BL0T5B00H0SP | BL0T5C00H0SP | |
| 90 | 2 x BL0T4B00H2SP | 2 x BL0T4C00H2SP | |
| 130 | 2 x BL0T5B00H0SP | 2 x BL0T5C00H0SP | |
How to replace the cylinder?
- humiSteam: refer to this video on Carel’s Youtube channel
- compactSteam: refer instead to this document published on Carel’s website.
