The universal multiregulator is the CLIMASET srl solution for reading probes and digital inputs and for managing devices and inverters with direct/reverse logics.

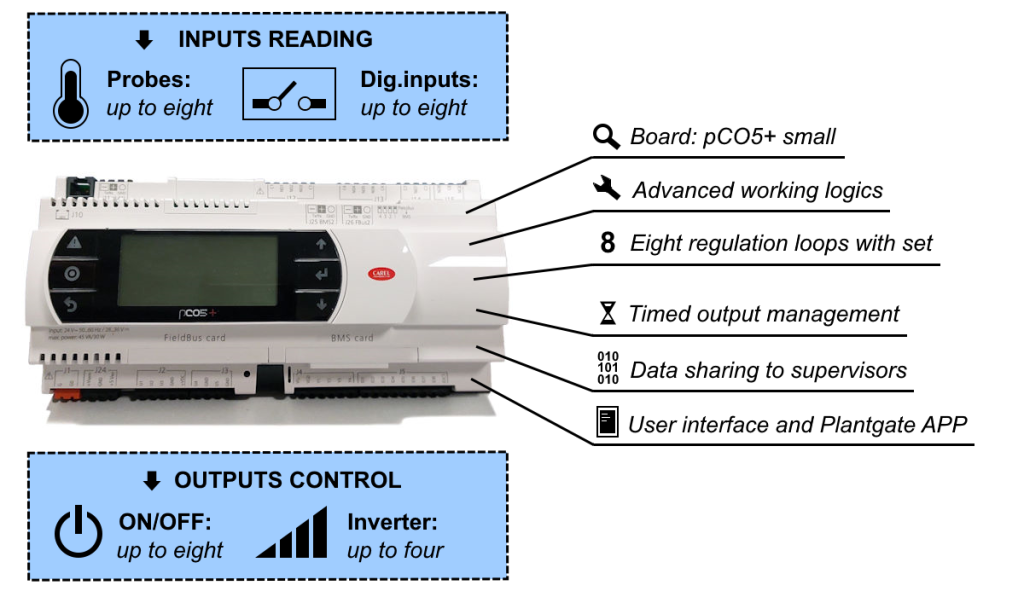

The universal multiregulator works with a pCO5+ controllers, available also with external or built-in semigraphic display. The universal multiregulator is compatible also with pCOcompact boards.
Main features
The universal multiregulator is designed for collecting data such as temperatures, pressures, digital inputs, etc.. and sharing them with supervision systems, for managing more efficiently your system, avoiding machine downtime and other problems.
The universal multiregulator is compatible with BOSS range supervisors (by using the CAREL or the Modbus protocols) and also with third-party sistems (by using the Modbus protocol).
With the universal multiregulator, the installer can manage up to:
- 8 probes (minimum 4 with 6 digital inputs on pCO5compact),
- 8 digital inputs (6, minimum 2 with 8 probes on pCO5compact),
- 8 ON/OFF devices (7 with pCO5compact),
- 4 inverter with 0/10V signal (1 with pCO5compact),
- 1 inverter with PWM signal/Tphase cut/for converter (only for pCO5compact),
- 8 regulation loops for managing devices and inverters.
Advanced feautures
The universal multiregulator offers advanced working logics, such as:
- Status/alarm/command functions with digital inputs,
- Assignment of an output for alarm/prealarm,
- Direct/reverse thermostat function,
- Steps insertion with rotation LIFO/FIFO/by time rotation,
- Protection timings for each single digital outputs,
- Delay for outputs intervention,
- Inverter for direct or continuous modulation,
- Association of more regulation loops to the same setpoint,
- General setpoint compensation on probe value,
- Control of more devices on the same regulation,
- Control of the same device from more regulations,
- Devices control by display/supervisor,
- Control of a temporized output by clock,
- Control of an output for direct/reverse mode,
- Advanced alarm logic and alarm history management.
